Outdoor mobile pure water production system

DAWT·2022-05-09

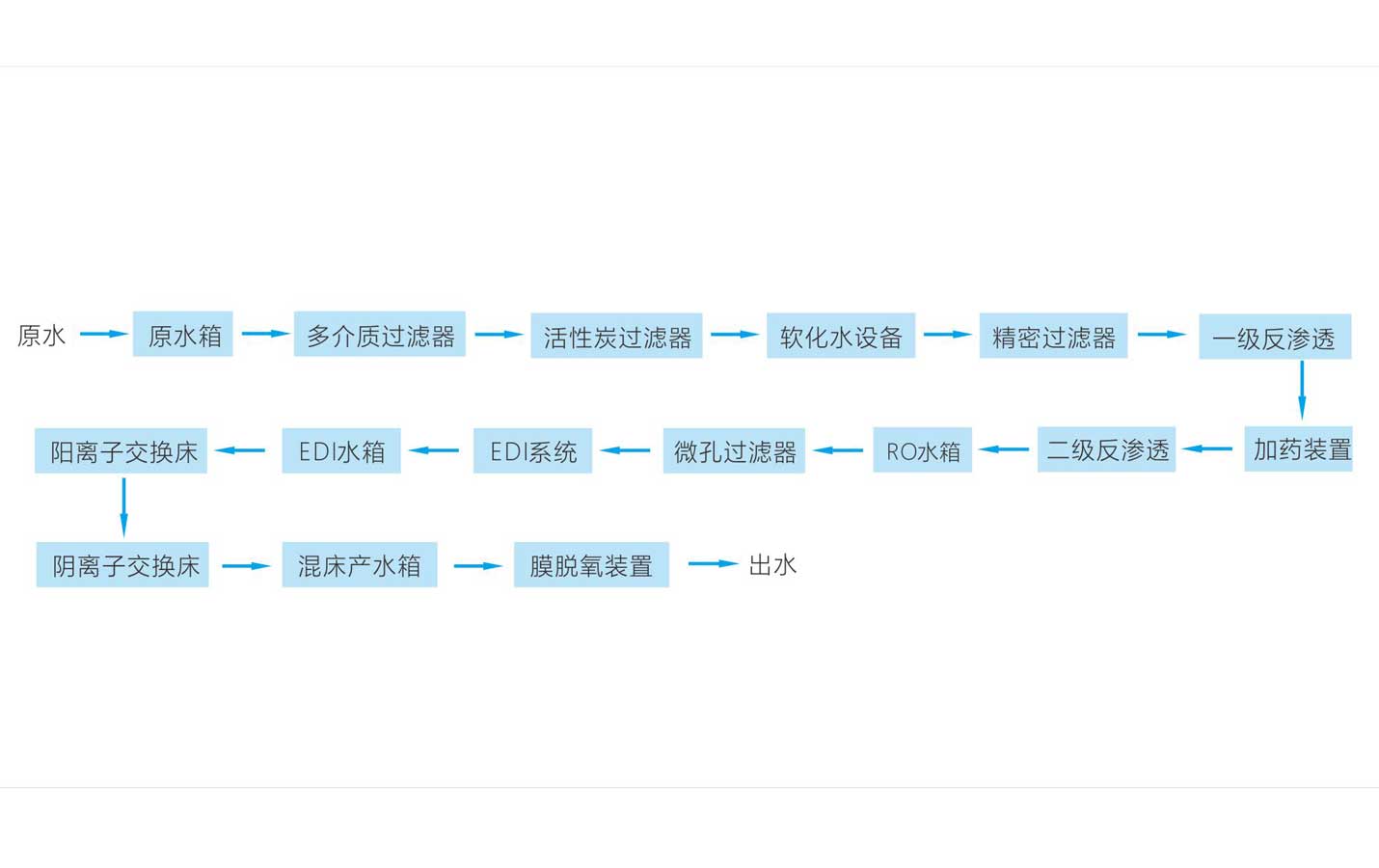

Process flow

1. Pretreatment system→reverse osmosis system→intermediate water tank→coarse mixed bed→fine mixed bed→pure water tank→pure water pump→ultraviolet sterilizer→polishing mixed bed→precision filter→ Water object (≥18MΩ.CM) (traditional craft).

2. Pretreatment → reverse osmosis → intermediate water tank → water pump → EDI device → purified water tank → pure water pump → ultraviolet sterilizer → polishing mixed bed → Water object (≥18MΩ.CM) (latest craft).

3. Pretreatment →first-stage reverse osmosis→dosing machine (PH adjustment)→intermediate water tank→second-stage reverse osmosis (positive charge reverse osmosis membrane)→pure water tank→pure water pump→EDI device →Ultraviolet sterilizer→0.2 or 0.5μm precision filter→Water object (≥17MΩ.CM) (the latest technology).

4. Pretreatment → reverse osmosis → intermediate water tank → water pump → EDI device → pure water tank → pure water pump → ultraviolet sterilizer → 0.2 or 0.5μm precision filter → ;15MΩ.CM) (the latest technology).

5. Pretreatment system → reverse osmosis system → intermediate water tank → pure water pump → coarse mixed bed → fine mixed bed → ultraviolet sterilizer → precision filter → water objects (≥15MΩ.CM) (Traditional craft) The above crafts have their own advantages, you can choose the craft that suits you according to your own situation. With the development of science, many new crafts have replaced the old crafts. The production of high-purity water by reverse osmosis has been popularized and is the most modern process.
