Hospital pure water equipment

DAWT·2022-05-09

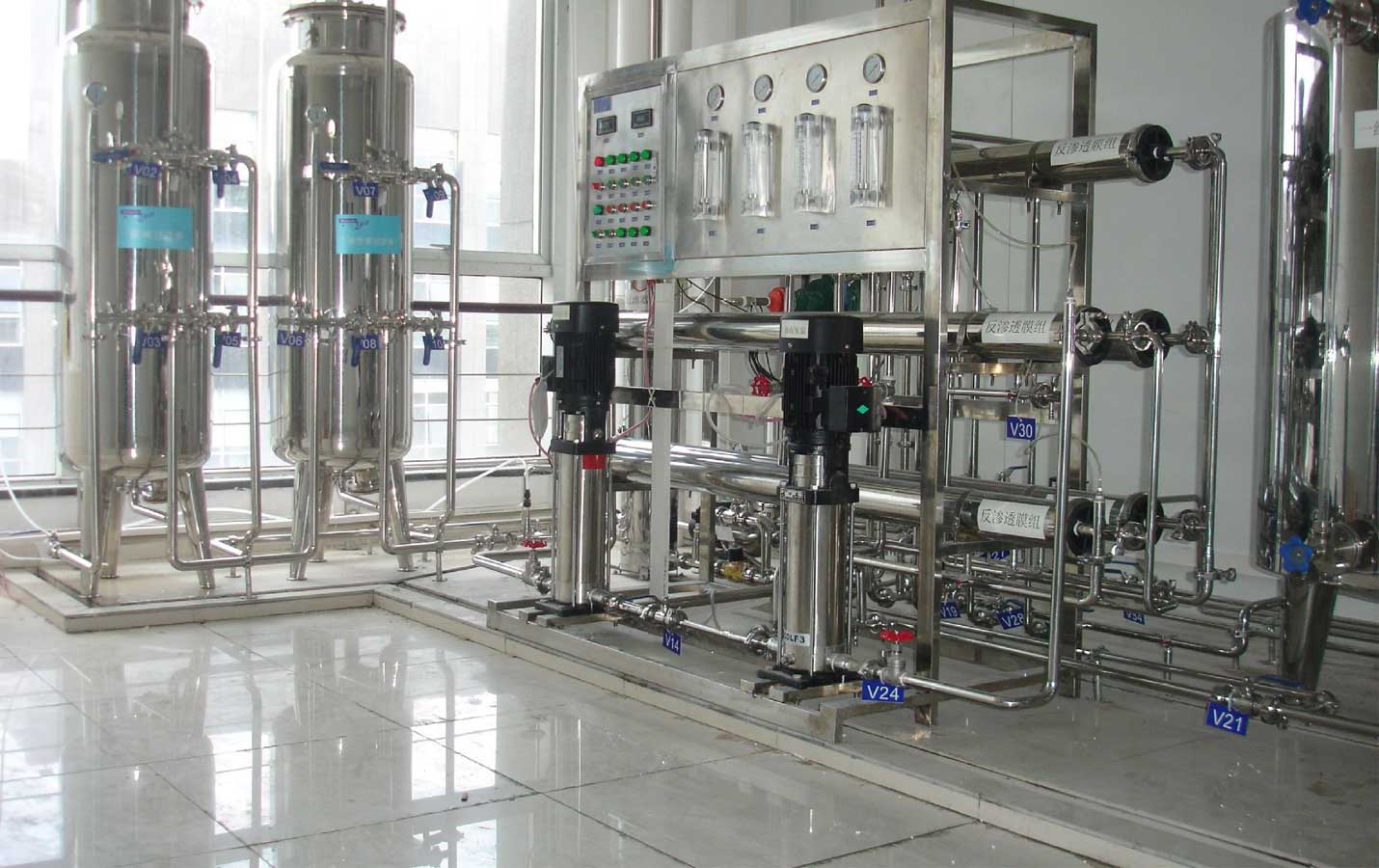

System Introduction

The pure water system used in the hospital adopts automatic control (manual control can also be used), and automatic backwashing and regeneration procedures can be set when the system is running; the primary reverse osmosis and secondary reverse osmosis are equipped with return pipelines, and the reverse osmosis equipment is equipped with The reverse osmosis membrane of the chemical cleaning device and disinfection device adopts the reverse osmosis membrane imported from the United States to ensure the long-term stable operation of the reverse osmosis equipment; the reverse osmosis pipeline is made of high-quality materials such as stainless steel and UPVC; in the first stage reverse osmosis and the second stage reverse osmosis The equipment is equipped with an online conductivity detector; the reverse osmosis system is equipped with low pressure protection and high pressure protection switches; the reverse osmosis water recovery rate is adjustable, the first reverse osmosis recovery rate is 60-70%, and the second reverse osmosis recovery rate is 70-80% %; The circulating conveying pipeline is equipped with ultraviolet sterilizer and microporous filter to ensure that the pure water meets the hygienic requirements.

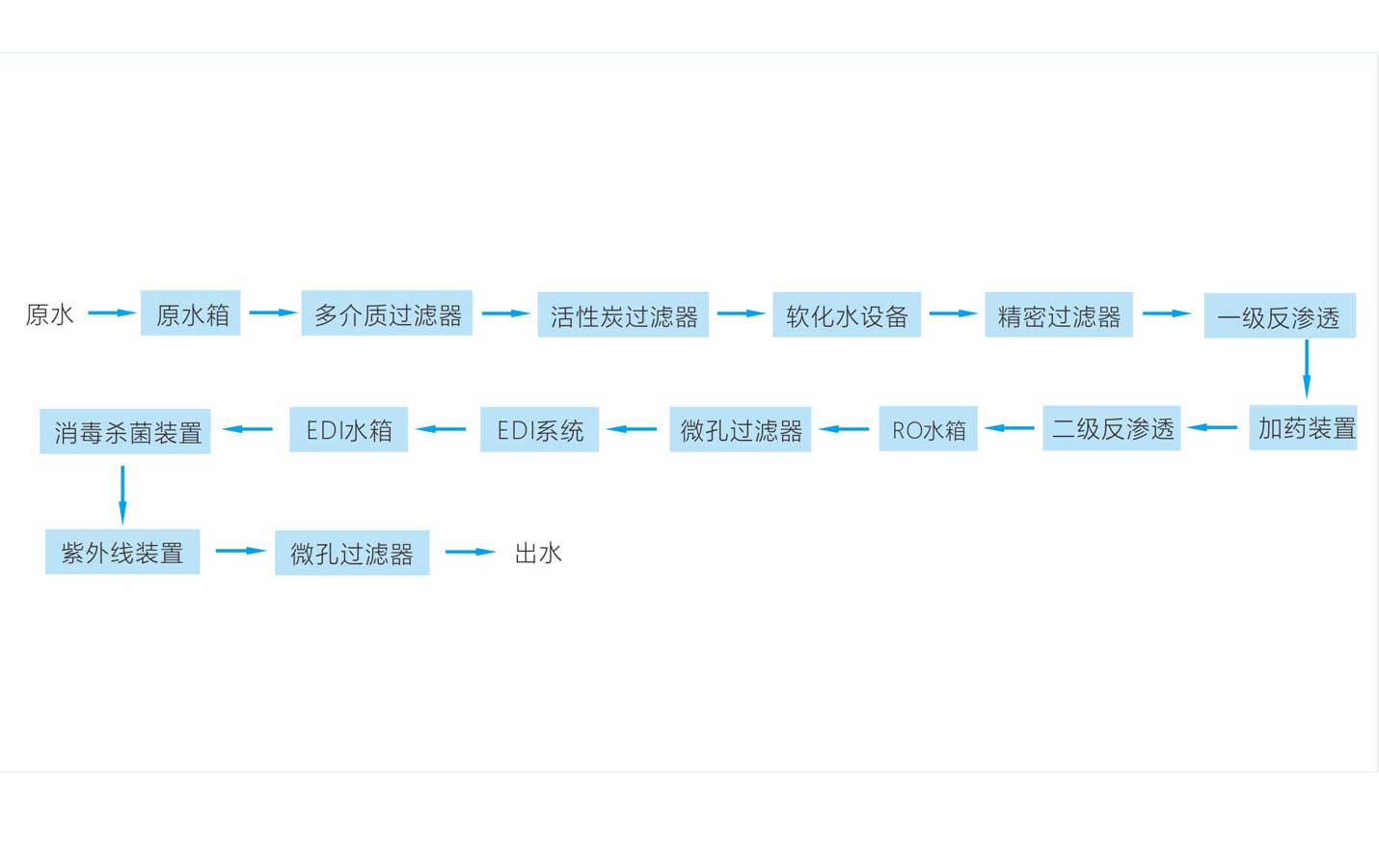

Process flow

Application Analysis of Hospital Pure Water Central Treatment System Investment and construction of a hospital's central centralized water production and quality water supply system can not only improve the modern management level of the hospital, but more importantly, it can generate greater benefits. The central centralized water production and quality water supply system can quickly replace the independent water machine water supply system of each department due to its advantages of good water quality controllability, low total investment cost, low operating cost, large machine room optionality, and small total floor space.
